Portable conveyor systems, quick setup and tear down, modular design, add length up to 100 feet.

The Add-A-Veyor/Porta-Veyor
Specifications

Capacity

  • Easily add new sections to a conveyor
    Easy-join gearing makes it fast and simple to add or remove conveyor sections for your applicaiton.
    500 pounds continuous carry over 75 feet (Standard model)
  • 800 pounds continuous carry over 100 feet (Heavy Duty model)
  • Right angle turns
  • 20% up- or down-slope

Physical Specifications

  • Each section is 12.5 feet (3.8 meters) long
  • 10 inch or 12 inch belt width
  • Drive section weighs 125 pounds (57 kg)
  • Extension sections weigh 55 pounds (25 kg)
  • Adjustable height legs
  • Stackable for easy storage

Drive Specifications

  • Single drive motor at one end for up to 100 feet (30.5 m) of conveyor
  • Power take off drive unit available
  • 100 VAC or 220 VAC motors
  • Electric power from electric circuit or portable generator
  • Reversible
  • Variable speed

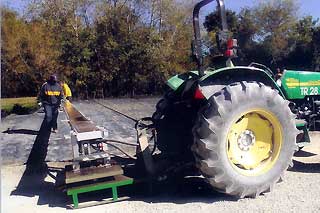

Power Take Off (PTO) unit
Add-A-Veyor/Porta-Veyor in a field, powered by a tractor's Power Take Off unit. This labor-saving device can be used anywhere at any time.

Options

  • Side Rails
  • Monopods
  • Storage cart
  • Leg extensions
  • Power Take Off (PTO) drive unit
  • Right angle connections
  • Flow-stop switch
  • Counter (electric eye)
  • Portable generator
  • Drive section mobility unit
  • U.H.M.W. wear strip for each conveyor section

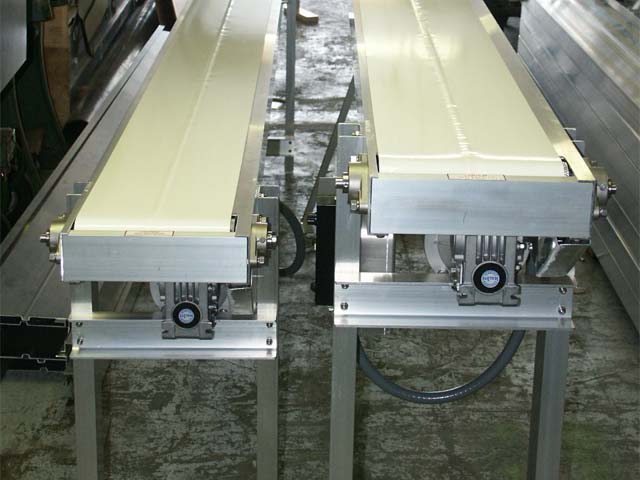

The Add-A-Veyor/Porta-Veyor comes in two widths and load capacities: standard and heavy duty.
Available in two widths and capacities: 10 inch and 12 inch conveyors,
with capacities of 500 and 800 pounds over 75 and 100 feet,r espectively.
